SPRING - openlayers 지도보기, mouseOver 좌표확인

hanker 2020. 8. 19. 10:27
반응형

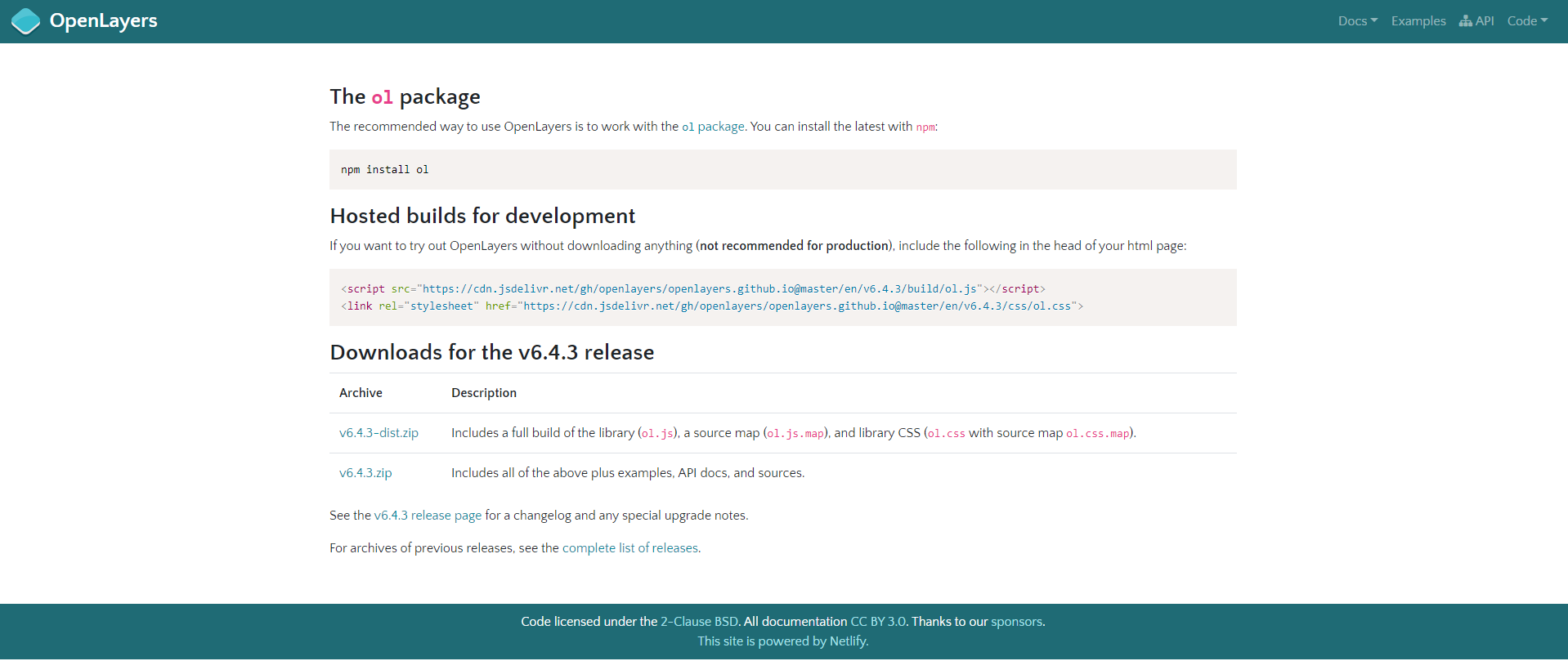

1. openlayers js, css 다운로드

https://openlayers.org/download/



OpenLayers - Get the Code

If you want to try out OpenLayers without downloading anything (not recommended for production), include the following in the head of your html page:

openlayers.org

v.6.4.3-dist.zip 다운로드

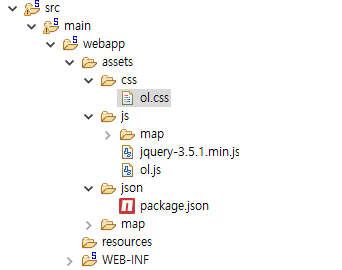

2. 스프링 프로젝트에 삽입



3. mapView.jsp 소스

<%@ page language="java" contentType="text/html; charset=utf-8" pageEncoding="utf-8" %>
<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c" %>
<%@ page session="false" %>
<!doctype html>
<html lang="en">
  <head>
    <meta charset="utf-8">
    <meta http-equiv="X-UA-Compatible" content="chrome=1">
    <meta name="viewport" content="initial-scale=1.0, user-scalable=no, width=device-width">
    <link rel="stylesheet" href="../assets/css/ol.css" type="text/css">
    <style type="text/css">
    .map {
        width: 100%;
        height:400px;
      }
    </style>
    <script src="https://unpkg.com/elm-pep"></script>
    <title>OpenLayer 지도|좌표확인</title>
  </head>
  <body>
    <div id="map" class="map"></div>
    <div id="mouse-position"></div>

    <form>
    	<label>Projection</label>
    	<select id="projection">
	    	<option value="EPSG:4326">EPSG:4326</option>
	    	<option value="EPSG:3857">EPSG:3857</option>
    	</select>
    	<label>Precision </label>
     	<input id="precision" type="number" min="0" max="12" value="4"/>
    </form>

    <script src="../assets/js/ol.js" type="text/javascript"></script>
    <script src="../assets/js/jquery-3.5.1.min.js"></script>
    <script type="text/javascript">

    	var mousePositionControl = new ol.control.MousePosition({
    		coordinateFormat: ol.coordinate.createStringXY(4),
    		projection: 'EPSG:4326',
    		className: 'custom-mouse-position',
    		target: document.getElementById('mouse-position'),
    		undefinedHTML: '&nbsp;',
    	});

    	var map = new ol.Map({
    		controls : ol.control.defaults().extend([mousePositionControl]),
    		target:'map',
    		layers: [
    			new ol.layer.Tile({
    				source : new ol.source.OSM()
    			})
    		],

    		view: new ol.View({
    			projection:'EPSG:4326',
    			center: [128.25, 35.95],
    			zoom : 7
    		})
    	});

    	var projectionSelect = document.getElementById('projection');
    	projectionSelect.addEventListener('change', function (event) {
    	  mousePositionControl.setProjection(event.target.value);
    	});

    	var precisionInput = document.getElementById('precision');
    	precisionInput.addEventListener('change', function (event) {
    	  var format = createStringXY(event.target.valueAsNumber);
    	  mousePositionControl.setCoordinateFormat(format);
    	});
    </script>
  </body>
</html>

OpenLayers 에 있는 소스는 namespace import형식으로 되어있음.

소스 코드 작성이 완료되면 서버 실행 후 확인



View

전라북도 도청





전라북도 도청

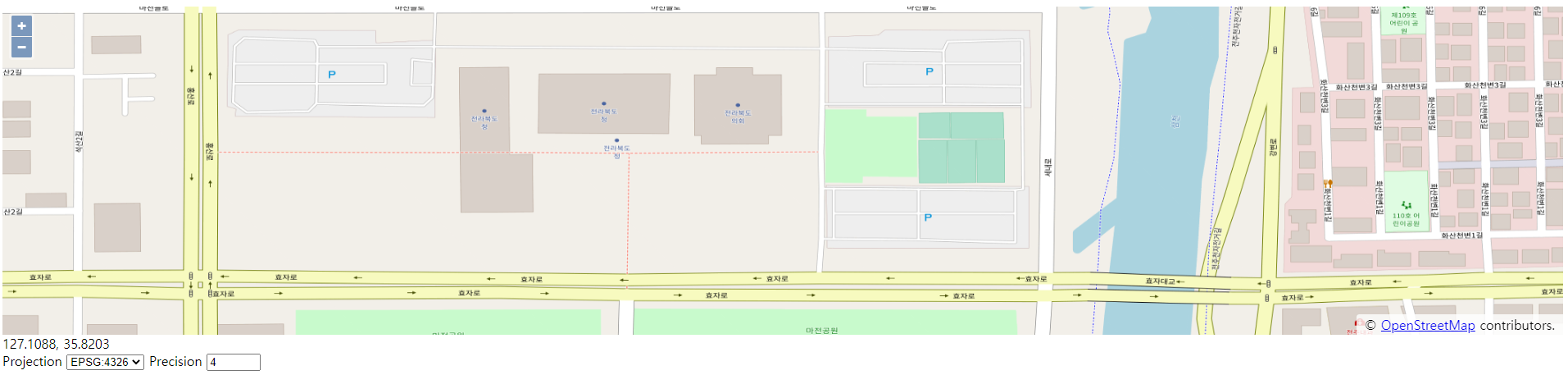

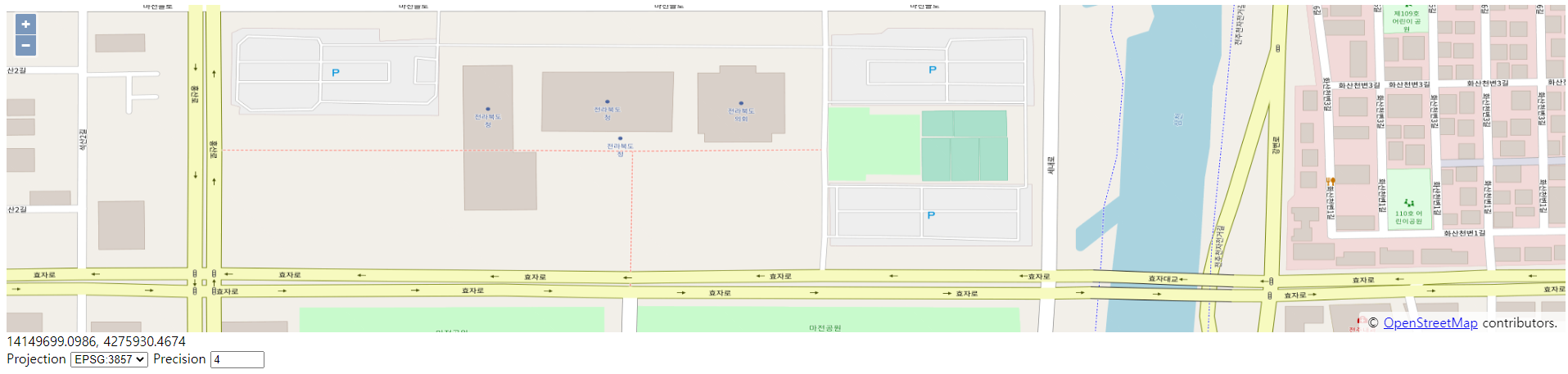

mouseOver 시 4326 좌표와 3857 좌표를 확인할 수 있다.
